XC608S series motion control system

SKU: PCS

The "xc608s series motion control system (CNC system)" developed by our company adopts high-performance 32-bit CPU, the driving device adopts step drive or AC servo drive, equipped with LCD and fully closed touch keyboard.The system has the characteristics of high reliability, high precision, low noise and easy operation.

The controller can control 1 to 3 motor movements, and realize point position, linear interpolation, arc interpolation and other operations.It has the function of circulation and jump.Simple and clear parameters bring convenience and speed to your operation.The setting function of input and output can facilitate your use, transformation and maintenance.

0.0 (0 Reviews)
0 Sold
$150.00 $120.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • XC608S series:
    XC6081S 1-axis
    XC6082S 2-axis
    XC6083S 3-axis
Quantity
-
+
  • XC608S series motion control system
  • XC608S series motion control system
1/1
  • XC608S series motion control system
  • Description
  1. major function
  • x, y, Z two axis linkage and three axis linkage, supporting linear and arc interpolation;

Simulation spindle function, 0-10V analog output and positive and reverse output;

  • support M09, M10, M11, G73, g81, g83, G88, g80, tricolor lamp output;

The pulse quantity can be converted into multiple display units;

Powerful PLC function, 30 programmable inputs and 16 programmable outputs to realize various complex functions;

Support handwheel function;

Support teaching function;

Support user parameter function (similar to macro program and variable);

Double coordinate system;

Support u disk function, import and export parameters and programs.

Support mechanical zero point, software origin and manual input origin;

Support soft limit and hard limit;

Support comparison and calculation functions;

Support the extension functions of external buttons such as forward rotation, reverse rotation, spindle stop, cooling, lubrication, etc;

Parameter setting: control parameters related to processing and operation can be set to achieve the best processing effect;

Manual operation: it can realize high and low speed manual operation, inching, returning to coordinate zero, returning to mechanical zero, etc;

Program management: the current processing program can be modified and saved;

Automatic processing: it can realize single section, continuous, pause and other functions.

  1. system composition

The CNC system consists of the following parts:

  • LCD (resolution: 192×64)
  • Special motion control chip (signal output: 5V TTL)
  • Input / output (30 photoelectric isolation 24 V input, 16 photoelectric isolation 24 V output)
  • The maximum number of program lines in user program memory (100 programs) is 998
  • Touch key array (56 keys)
  1. Technical index

Unit: Degree (°), R, mm

Speed unit: Unit / min

Minimum data unit: 0.001

Maximum data size: ± 99999.999

Maximum pulse output frequency: 200kHz

Number of control axes: 3 axes (x, y, z)

Number of linkage axes: straight line 3 axis (x, y, z), arc 2 axis (x, y)

Electronic gear: numerator (n): 1-9999999, denominator (m): 0.001-99999.999

Main functions of the system: automatic, manual, program editing, system parameters, self checking, setting, etc.

  1. Appearance and panel

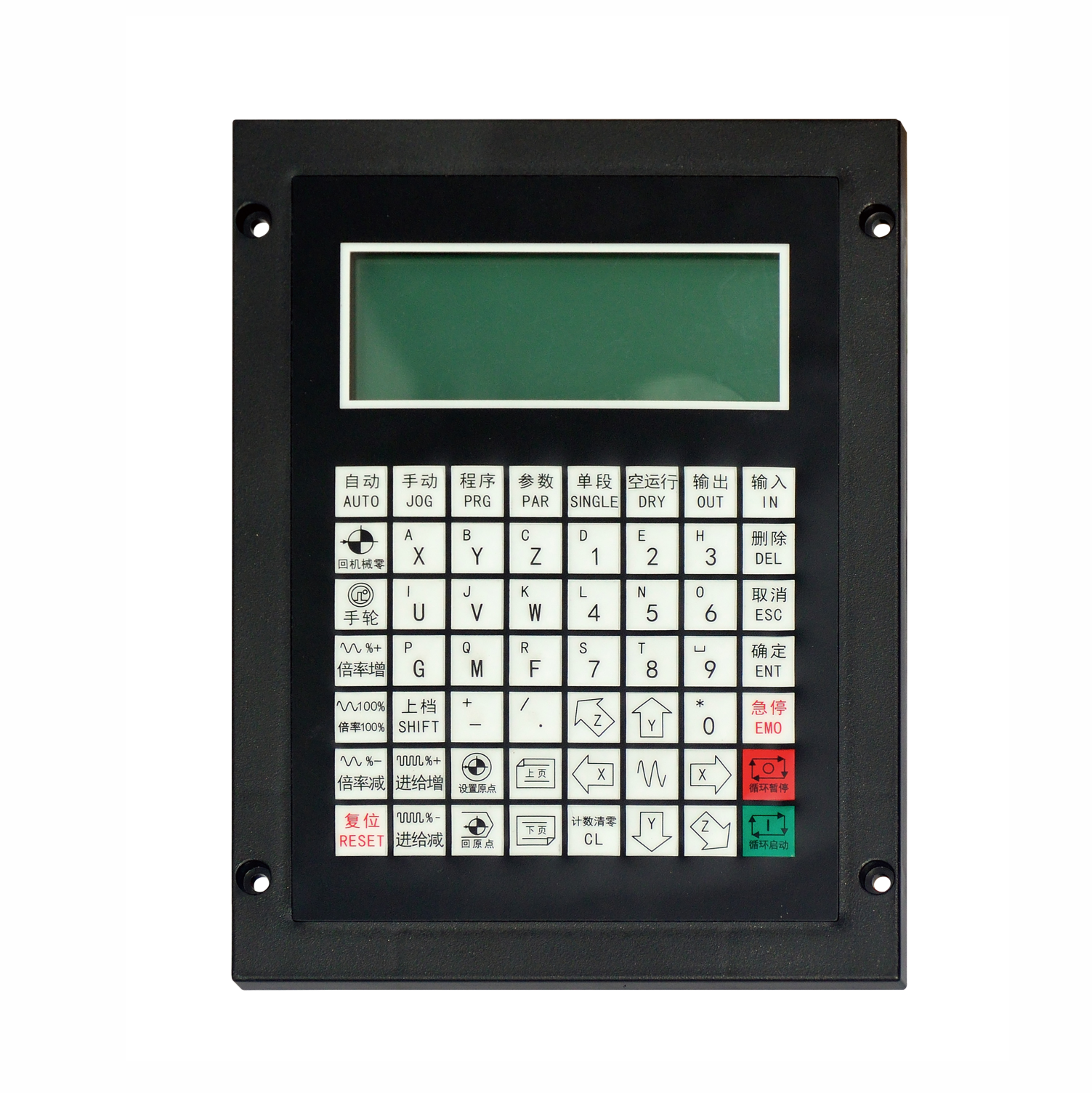

Control system appearance: see home page

Overall dimension: 215 * 161 * 45mm

Embedded hole size: 193 * 139mm
