XC799M series drilling and tapping multi-function and multi-purpose numerical control system

SKU: PCS

Introduction to the system

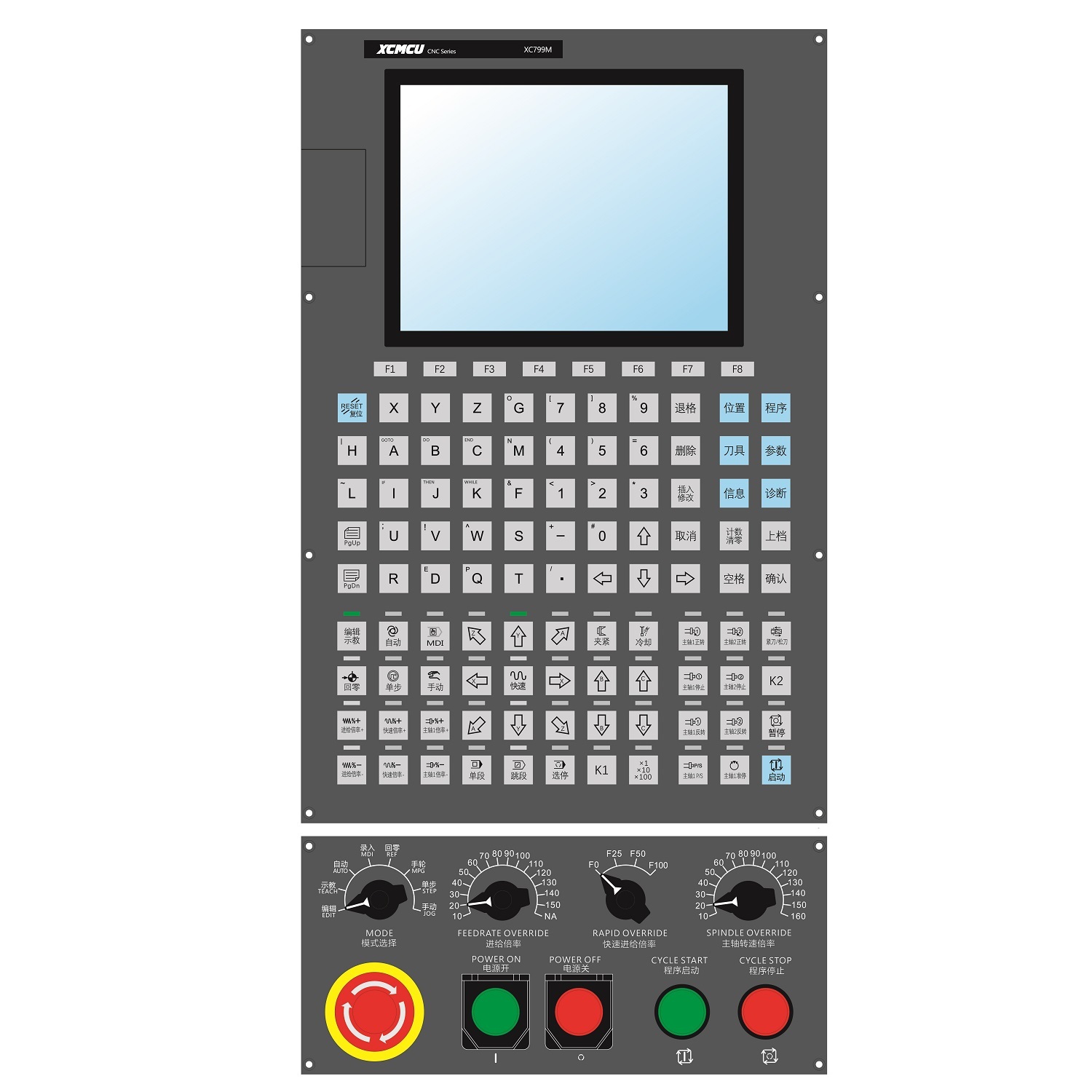

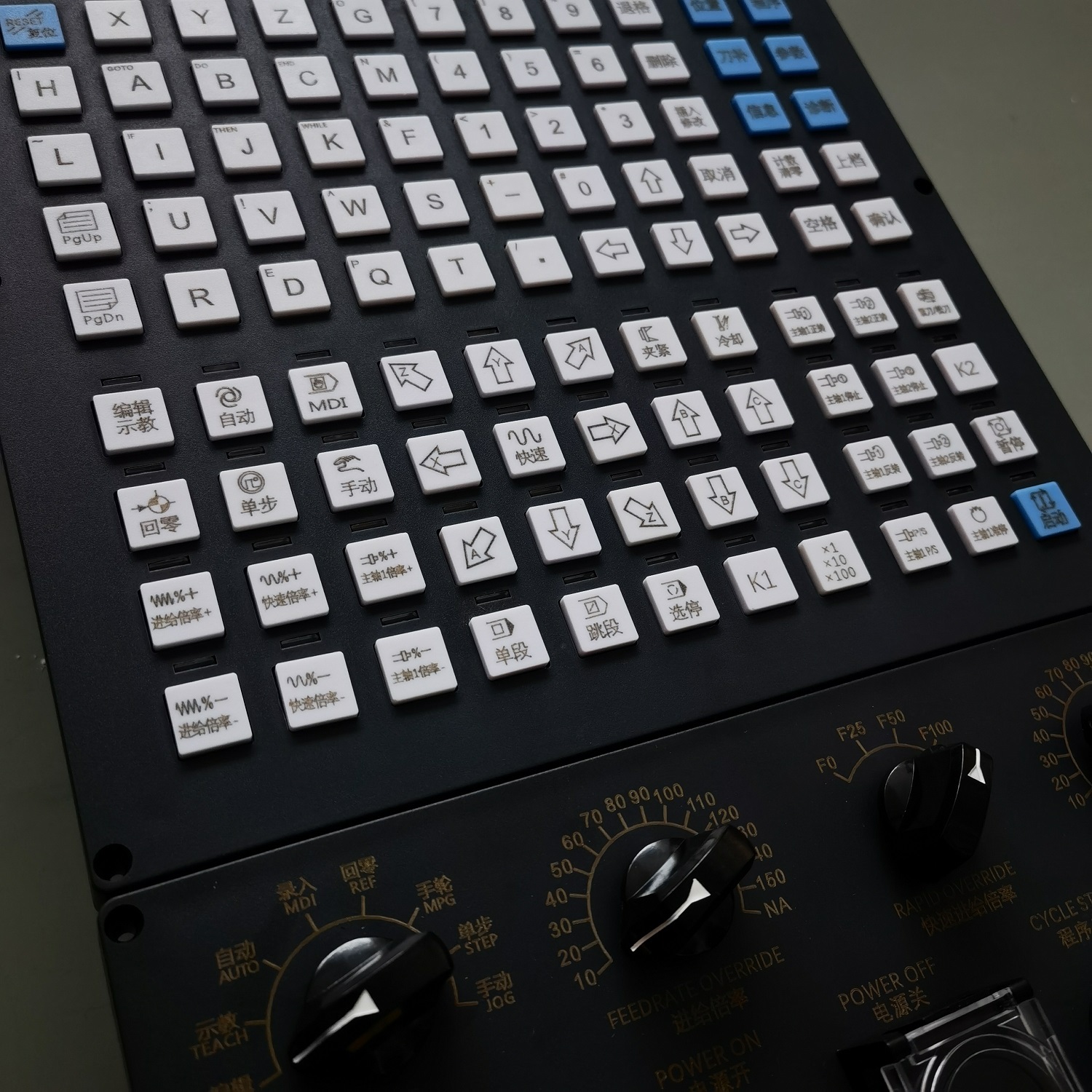

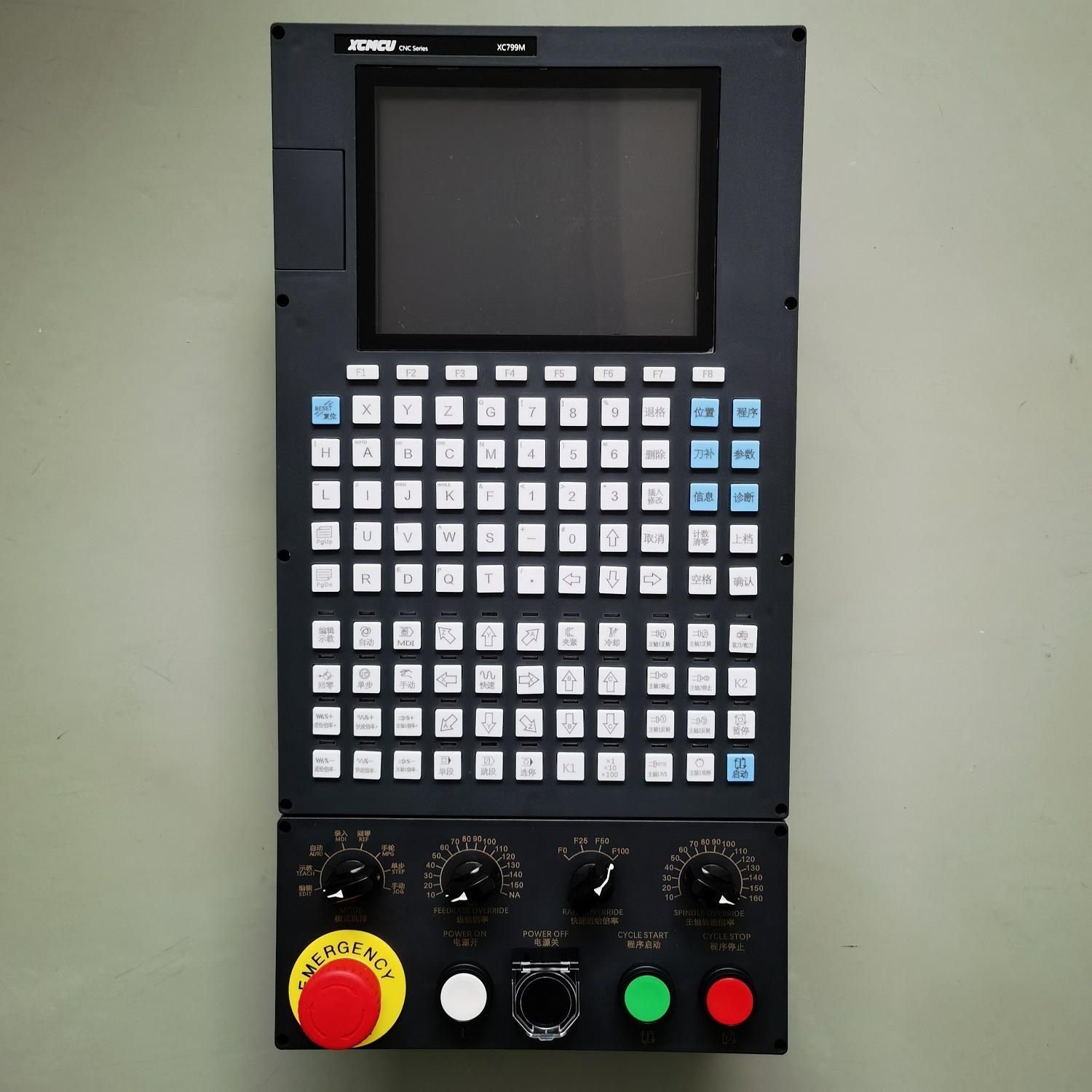

XC799M drilling and tapping multi-purpose CNC system is a new generation of CNC system developed by our company. It supports boring, tapping, drilling and automatic loading. It adopts 32-bit high-performance microprocessor, real-time multi-tasking control technology and hardware interpolation technology, full linkage, 0.001mm interpolation accuracy, and the highest speed of 30 meters/minute. It is the best choice for CNC drilling machines, special machine tools, automation equipment, feeding robots and so on.

0.0 (0 Reviews)
0 Sold
$0.00 $420.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • XC799M series:
    XC799MB 2-axis
    XC799MC 3-axis
    XC799MD 4-axis
    XC799ME 5-axis
    XC799MF 6-axis
Quantity
-
+
  • XC799M series drilling and tapping multi-function and multi-purpose numerical control system
  • XC799M series drilling and tapping multi-function and multi-purpose numerical control system
  • XC799M series drilling and tapping multi-function and multi-purpose numerical control system
  • XC799M series drilling and tapping multi-function and multi-purpose numerical control system
  • XC799M series drilling and tapping multi-function and multi-purpose numerical control system
  • XC799M series drilling and tapping multi-function and multi-purpose numerical control system
1/1
  • XC799M series drilling and tapping multi-function and multi-purpose numerical control system
  • XC799M series drilling and tapping multi-function and multi-purpose numerical control system
  • XC799M series drilling and tapping multi-function and multi-purpose numerical control system
  • Description

XC799M CNC system hardware and software features.

★Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, maximum speed 30m/min, support direction + pulse and orthogonal pulse.

★Can run 3 programs at the same time (1 main program, 2 sub-programs), which is convenient for processing, loading, and unloading program writing.

★Using 8.4-inch color widescreen LCD, resolution 800 x 600, Windows interface style. Equipped with 8 soft function keys, easy to operate. Provide parameter classification, alarm logs, system diagnostics and other rich display interface, convenient debugging and maintenance.

★International standard G instruction, compatible with FANUC system instruction.

★40 kinds of G commands, support drilling cycle and tapping cycle.

★Supports RS485 absolute servo.

★Parts program full-screen editing, built-in 500M massive program space, can store N parts program.

★With USB interface, support U disk file reading and writing, data backup.

★Input 24 (expandable to 96) points, output 24 (expandable to 96) points (customized), flexible and convenient.

★Chinese/English operation interface, complete help information, more convenient operation.

★The system uses interpolation front acceleration and deceleration control.

★Support multi-level operating privileges, convenient equipment management, with time-limited system lock function.

★Support UG, Mastercam, PowerMill, FeatureCAM, ArtCAM, JDPaint, Wentai and other third-party software G code files.

★Support self-programming tool magazine, flexible use of a variety of tool magazines.



1.2 technical specifications

basic functions

control the number of axes

2~6轴

Number of linked axes

Full linkage

Knife storage

Support,need to edit the code of the cutter

Spindle

3 spindles, 2 analog spindles, can also be configured as 3 servo spindles, in 3-way digital spindle configuration mode, can achieve 3-channel synchronous or asynchronous tapping.

spindle monitoring

have

minimum command unit

0.001 mm

maximum command value

± 999999999 x minimum command unit

Rapid feed speeds

30,000 mm/min

Rapid feed multiplier

F0, 25%, 50%, 75%,100%

Pulse mode

1:Direction+Pulse 2:Orthogonal Pulse(If the driver support, recommend, anti-interference is stronger) 3:Double Pulse, compatible with the old stepper driver

Maximum frequency

100Khz,250Khz,500Khz can be set. (500KHz only orthogonal output pulse)

Feed rate multiplier

0150%

electronic gear ratios

165535: 165535

Automatic acceleration and deceleration

have

Positioning

G00 (Linear interpolation positioning possible)

Interpolation

Linear (G01), circular (G02/G03/G12), helical interpolation

return to the reference point

Automatic return to reference point (G28)

LCD

8.4-inch TFT LCD screen, resolution 800X600

MDI soft keys

8

Single-step feed

x1,x10,x100

communication interface

USB flash drive interface

external handwheel interface

have

I/O interface

24/24 (expandable to 96/96)

Pause (seconds)

have

Quasi-parking status

have

Permission to stop

have

Storage trip check

have

MDI operation

Yes, supports multi-segment operation

Reset

have

Jump section switch

have

single-segment operation

have

program protection switch

have

self-diagnostic function

have

Emergency stop

have

Power supply

Single-phase AC220V+10%-15%,50Hz±1Hz

coordinate system

Machine coordinate system (G53), workpiece coordinate system (G92, G54~G59), local coordinate system (G52), coordinate system plane designation

automatic coordinate system setting

have

decimal entry

have

Auxiliary functions

Auxiliary functions

M2 digit, M code customization, manual/MDI/automatic way to control the spindle forward, reverse, stop; control the coolant start and stop; control the lubrication start and stop, etc.,

spindle functions

spindle functions

3 spindles

digital spindle

3 Digital spindle (Z-axis not supported), more stable speed.

Tapping

Supports up to 3-channel tapping (in 3-channel digital spindle configuration mode)

spindle analog output

Yes, spindle 1, spindle 2 analog

tool functions

tool functions

Support automatic tool change, support centering tool setting, three-point centering tool setting

tool compensation memory

-9999.999~9999.999,99

tool compensation

length compensation for each axis

editing operations

editing functions

parameters, diagnostic per-position input, program editing, MDI multi-segment execution

storage capacity

500M

number of stored programs

N

the display of program names

Chinese, English, numbers, combinations

program line lookup

have

Skipping optional program segments

have

program switches

have

Display

display language

Chinese, English

Machining time and number of parts display

have

Spindle speed, M/S command

have

Dimension of main unit(mm)

Overall Dimension(H×W×T)

400×265×80

Opening size (H×W)

388×248
