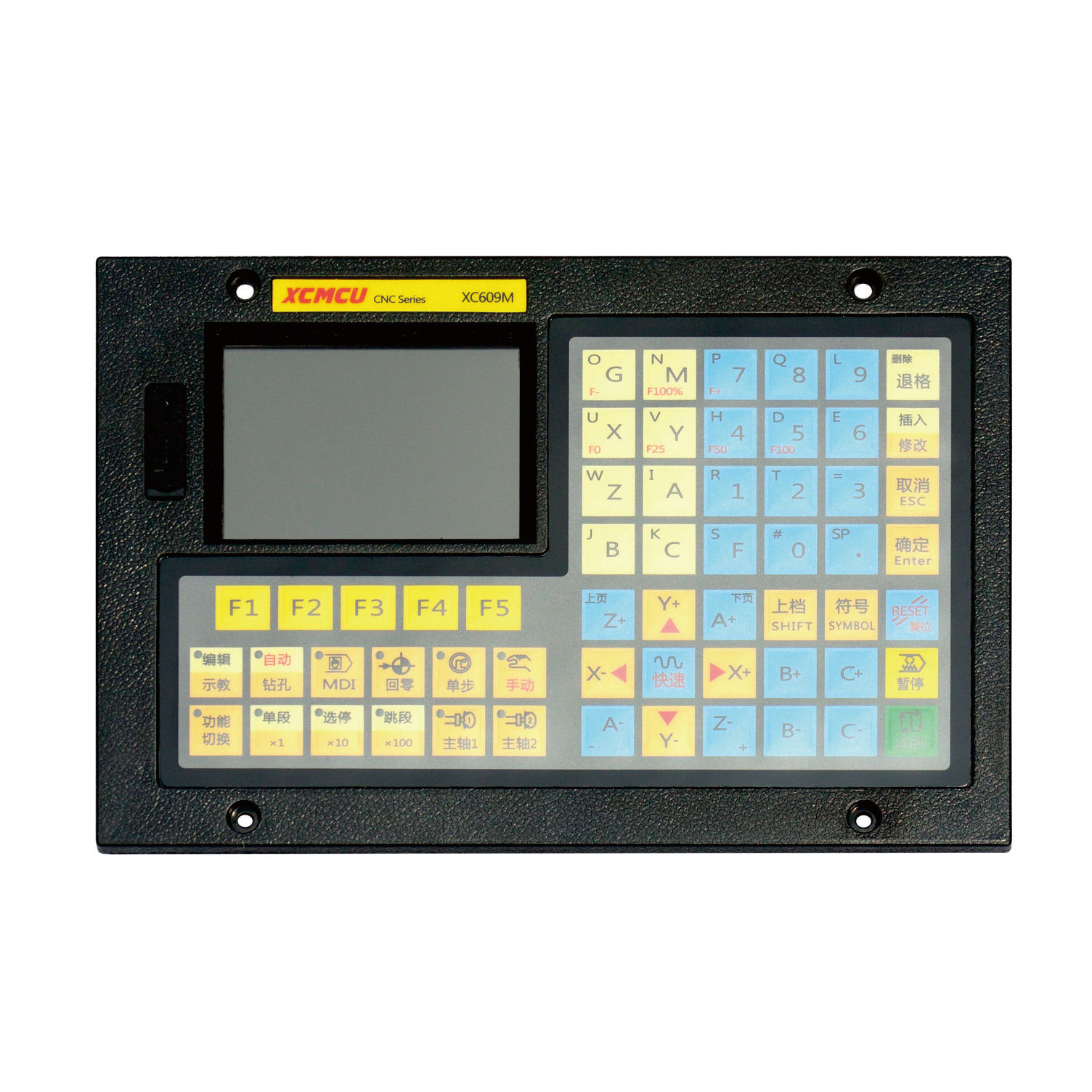

Software and hardware characteristics of XC609M CNC system:
Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy and maximum speed of 12m / min.
Three programs (one main program and two auxiliary programs) can be run at the same time, which is convenient for processing, loading and unloading.
It adopts 3.5 inch color wide screen LCD with resolution of 480x320 and windows interface style.Equipped with 5 soft function keys, easy to operate and learn.Provide parameter classification, alarm log, system diagnosis and other rich display interface to facilitate debugging and maintenance.
It is compatible with FANUC system instruction.
There are 40 kinds of G commands, supporting drilling cycle and tapping cycle.
Full screen editing of part program, built-in 512M mass program space, can store n part programs.
With USB interface, it supports file reading and writing and data backup of U disk.
Input 24 (expandable to 96) points, output 24 (expandable to 96) points (customized), flexible and convenient.
The Chinese / English operation interface, complete help information, more convenient operation.
The system adopts acceleration and deceleration control before interpolation.
It supports multi-level operation authority, facilitates equipment management, and has time limited system locking function.
Support G code file of third party software.
1.2 technical specifications
|
basic function
|
|
Number of control axes
|
Axis 1 ~ 6 (x, y, Z, a, B, c)
|
|
Number of linkage axes
|
Full linkage
|
|
Simulation spindle
|
2
|
|
Spindle monitoring
|
yes
|
|
Minimum instruction unit
|
0.001 mm
|
|
Maximum instruction value
|
±99999999×Minimum instruction unit
|
|
Rapid feed rate
|
12000 mm / min
|
|
Rapid feed rate
|
F0, 25%, 50%, 100%
|
|
feed rate
|
12000 mm / min
|
|
Rate feed rate
|
0～150%
|
|
Electronic gear ratio
|
1～65535: 1～65535
|
|
Automatic acceleration and deceleration
|
yes
|
|
location
|
G00 (linear interpolation positioning)
|
|
interpolation
|
Linear (G01), arc (G02 / G03 / G12), spiral interpolation
|
|
Return to reference point
|
Automatic return to reference point (G28)
|
|
LCD
|
3.5-inch TFT LCD with resolution of 480x320
|
|
MDI software key
|
Five
|
|
Single step feed
|
x1，x10，x100
|
|
communication interface
|
U disk interface
|
|
External handwheel interface
|
yes
|
|
I / O interface
|
24 / 24 (expandable to 96 / 96)
|
|
Pause (SEC)
|
yes
|
|
Quasi stop state
|
yes
|
|
Accurate stop
|
yes
|
|
Memory trip check
|
yes
|
|
MDI operation
|
Yes, it supports multi segment operation
|
|
reset
|
yes
|
|
Trip switch
|
yes
|
|
Single section operation
|
yes
|
|
Program protection switch
|
yes
|
|
Self diagnosis function
|
yes
|
|
Emergency stop
|
yes
|
|
Power Supply
|
DC24V
|
|
Coordinate system
|
Machine coordinate system (g53), workpiece coordinate system (G92, g54 ~ G59), local coordinate system (G52), coordinate system plane designation
|
|
Automatic coordinate system setting
|
yes
|
|
Decimal point input
|
yes
|
|
Auxiliary function
|
|
Auxiliary function
|
M2 digit, M code user-defined, manual / MDI / automatic control spindle forward, reverse, stop;Control the start and stop of coolant;Control the start and stop of lubrication
|
|
Spindle function
|
|
Spindle function
|
Double spindle
|
|
tapping
|
support
|
|
Spindle analog output
|
Yes, double spindle
|
|
Tool function
|
|
Tool function
|
It supports the tool setting in the middle and three-point centering
|
|
Tool compensation memory
|
-9999.999 ~ 9999.999, 99
|
|
Tool compensation
|
Length compensation of each axis
|
|
Edit operation
|
|
Editing function
|
Parameters, diagnosis bit input, program editing, MDI multi program segment execution
|
|
storage capacity
|
512M
|
|
Number of stored programs
|
N
|
|
Display of program name
|
Chinese, English, numbers, combinations
|
|
Program line lookup
|
yes
|
|
Optional program skip
|
yes
|
|
Program switch
|
yes
|
|
display
|
|
display
|
Chinese, English
|
|
Display of processing time and number of parts
|
yes
|
|
Spindle speed, M / s command
|
yes
|
