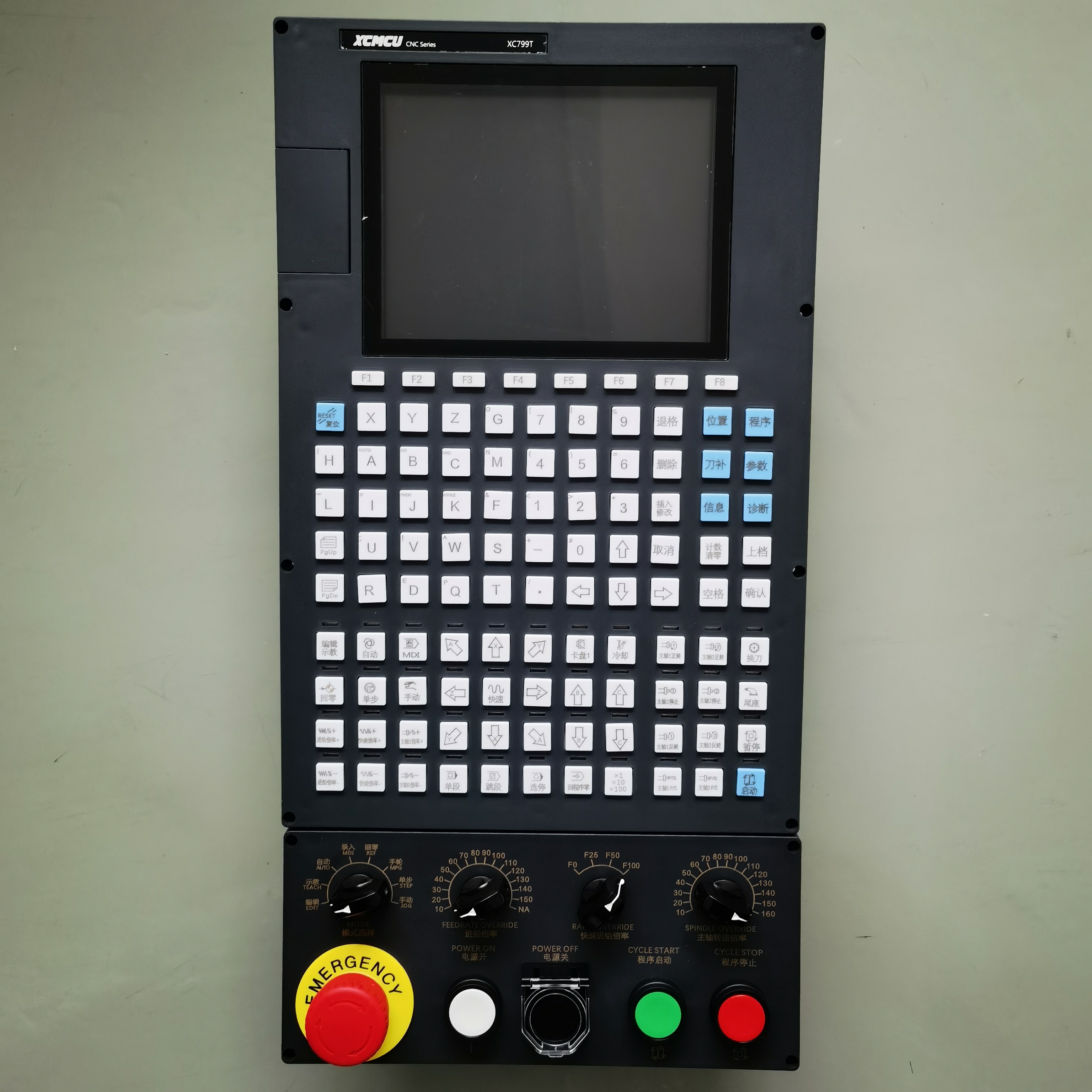

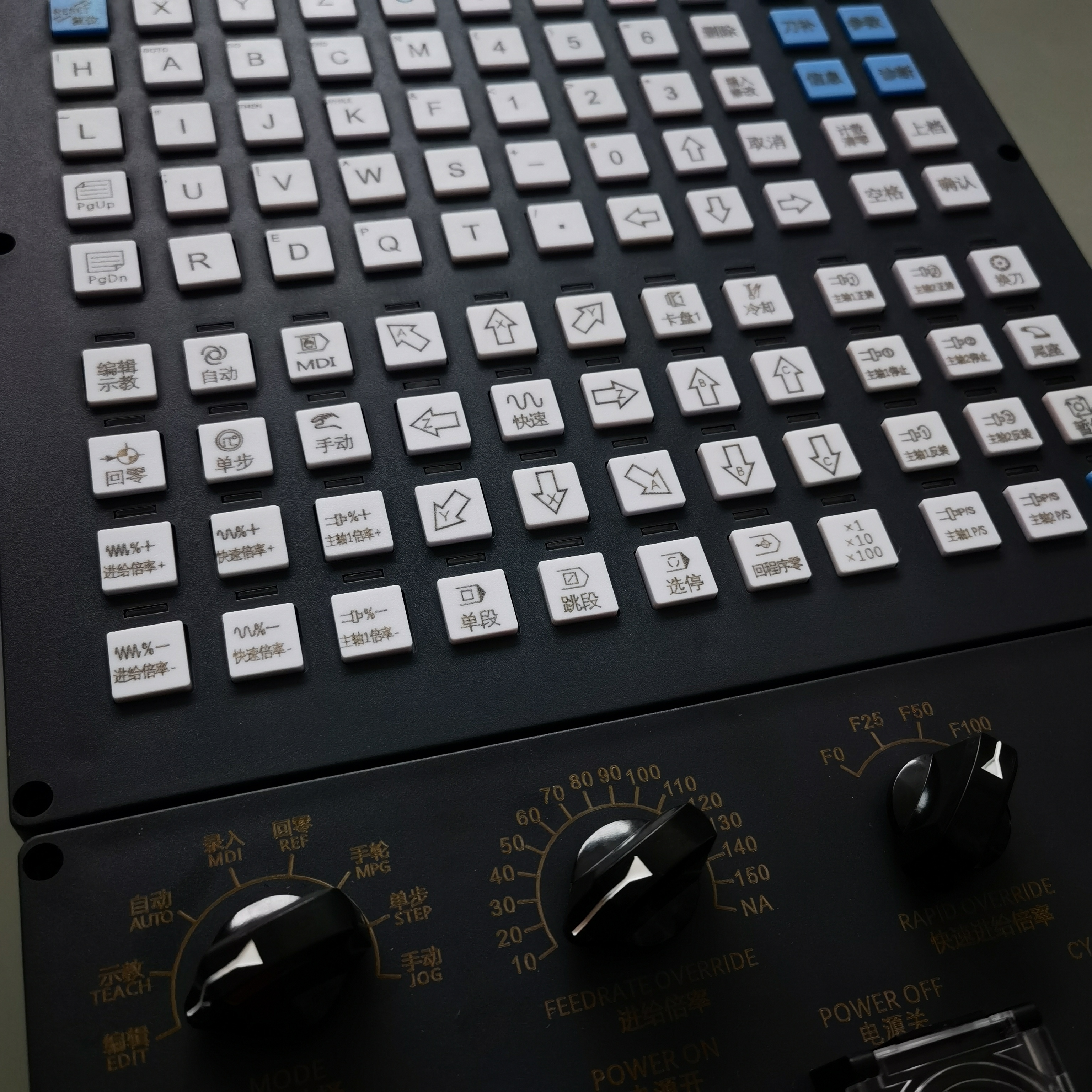

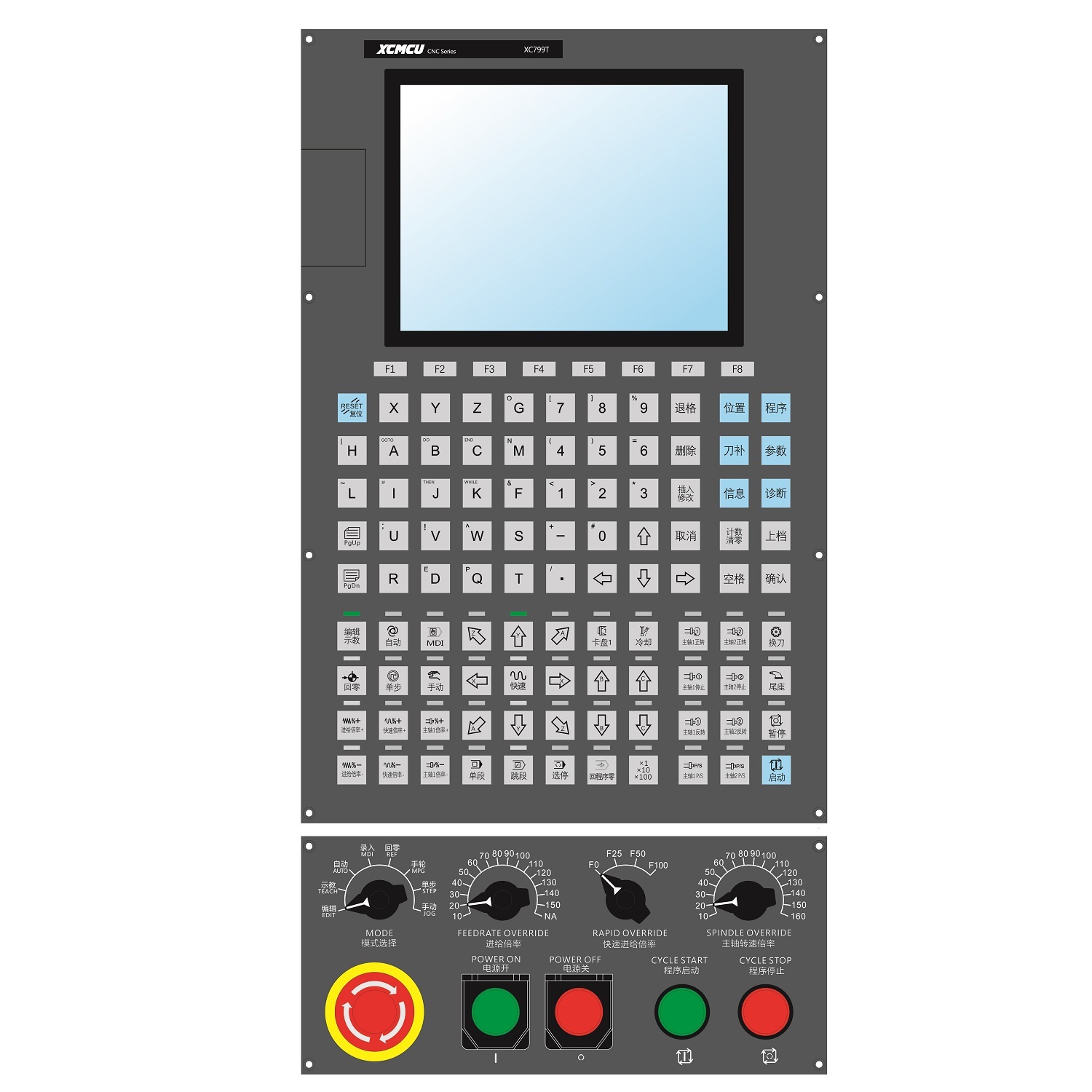

XC799T CNC system hardware and software features.
★Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, maximum speed 30m/min, support direction + pulse and orthogonal pulse.
★Using 8.4-inch color widescreen LCD, resolution 800 x 600, Windows interface style. Equipped with 8 soft function keys, easy to operate. Provide parameter classification, alarm logs, system diagnostics and other rich display interface, convenient debugging and maintenance.
★International standard G instruction, compatible with FANUC system instruction.
★Supports RS485 absolute servo.
★Parts program full-screen editing, built-in 500M massive program space, can store 500 parts program.
★With USB interface, support U disk file reading and writing, data backup.
★Input 24 (expandable to 96) points, output 24 (expandable to 96) points (customized), flexible and convenient.
★Chinese/English operation interface, complete help information, more convenient operation.
★ Supports knife length and radius knife patches.
★Support handwheel trial processing, convenient program debugging.
★Support multi-level operating privileges, convenient equipment management, with time-limited system lock function.
★Support UG, Mastercam, PowerMill, FeatureCAM and other third-party software G code files.
★Support self-programming tool magazine, can flexibly use a variety of tool magazines, can use servo turret.
★Dual spindles, support spindle 2 and spindle 1 synchronized to achieve flying cutter cutting (dual servo spindles are required).
★Double spindle positioning function, can realize double-head machining.
★Able to run a feeding program simultaneously for efficient processing.
★Support side drilling and tapping, spindle 2 position interpolation tapping.
1.2 technical specifications
Basic functions
|
control the number of axes
|
2~6轴
|
Number of linked axes
|
Full linkage
|
Knife storage
|
Support,need to edit the code of the cutter
|
minimum command unit
|
0.001 mm
|
maximum command value
|
± 999999999 x minimum command unit
|
Rapid feed speeds
|
30,000 mm/min
|
Cutting feed mode
|
Feed per minute, feed per revolution
|
Rapid feed multiplier
|
F0, 25%, 50%, 75%,100%
|
Pulse mode
|
1:Direction+Pulse 2:Orthogonal Pulse(If the driver support, recommend, anti-interference is stronger) 3:Double Pulse, compatible with the old stepper driver
|
Maximum frequency
|
100Khz,250Khz,500Khz can be set. (500KHz only orthogonal output pulse)
|
Feed rate multiplier
|
0~150%
|
electronic gear ratios
|
1~65535: 1~65535
|
constant linear velocity
|
have
|
High-speed small line segment look-ahead algorithms
|
have
|
Handwheel test machining
|
have
|
Positioning
|
G00 (Linear interpolation positioning possible)
|
Interpolation
|
Linear (G01), circular (G02/G03/G12), helical interpolation
|
return to the reference point
|
Automatic return to reference point (G28)
|
LCD
|
8.4-inch TFT LCD screen, resolution 800X600
|
MDI soft keys
|
8
|
Single-step feed
|
x1,x10,x100
|
communication interface
|
USB flash drive interface
|
external handwheel interface
|
have
|
I/O interface
|
24/24 (expandable to 96/96)
|
Pause (seconds)
|
have
|
Quasi-parking status
|
have
|
Permission to stop
|
have
|
Storage trip check
|
have
|
MDI operation
|
Yes, supports multi-segment operation
|
Reset
|
have
|
Jump section switch
|
have
|
single-segment operation
|
have
|
program protection switch
|
have
|
self-diagnostic function
|
have
|
Emergency stop
|
have
|
Power supply
|
Single-phase AC220V+10%-15%,50Hz±1Hz
|
coordinate system
|
Machine coordinate system (G53), workpiece coordinate system (G92, G54~G59), local coordinate system (G52), coordinate system plane designation
|
automatic coordinate system setting
|
have
|
decimal entry
|
have
|
Cofunctions
|
Auxiliary functions
|
M2 digit, M code customization, manual/MDI/automatic control of spindle forward, reverse, stop; control of coolant start/stop; control of lubrication start/stop, etc
|
Spindle function
|
spindle functions
|
Dual spindle: analog, 485 communication (more stable than analog), servo pulse can be used
|
digital spindle
|
Support, dual digital spindle support flying cutter cutting function
|
Tapping threads
|
Supported, Spindle 2 only supports interpolated tapping. Supports spindle 1 for interpolated threading.
|
spindle analog output
|
Yes, dual spindle 0~10V
|
Knife function
|
tool functions
|
Supports automatic tool change.
|
tool compensation memory
|
-9999.999~9999.999, 16
|
tool compensation
|
XZ tool length patch, radius patch
|
editorial operations
|
editing functions
|
parameters, diagnostic per-position input, program editing, MDI multi-segment execution
|
storage capacity
|
500M
|
number of stored programs
|
500
|
the display of program names
|
Chinese, English, numbers, combinations
|
program line lookup
|
have
|
Skipping optional program segments
|
have
|
program switches
|
have
|
Display
|
Display
|
Chinese, English
|
Machining time and number of parts display
|
have
|
Spindle speed, M/S command
|
have
|
Size(mm)
|
Overall Dimension(H×W×T)
|
400×265×80
|
Opening size (H×W)
|
388×248
|
