The software and hardware characteristics of XC709D and XC809D CNC system are as follows
Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, maximum speed of 30 m / min, support direction + pulse and orthogonal pulse.
It adopts 7-inch color wide screen LCD with resolution of 800×480, windows interface style.Equipped with 8 soft function keys, easy to operate and learn.Provide parameter classification, alarm log, system diagnosis and other rich display interface to facilitate debugging and maintenance.
It is compatible with FANUC system instruction.
There are 40 kinds of G commands, supporting drilling cycle and tapping cycle.
Full screen editing of part program, built-in 512M mass program space, can store n part programs.
With USB interface, it supports file reading and writing and data backup of U disk.
Input 24 (expandable to 96) points, output 24 (expandable to 96) points (customized), flexible and convenient.
The Chinese and English operation interface, complete help information, more convenient operation.
The system adopts acceleration and deceleration control before interpolation.
It supports long tool compensation and radius compensation.
It supports the trial processing of handwheel, which is convenient for program debugging.
It supports multi-level operation authority, facilitates equipment management, and has time limited system locking function.
Support G code files of third-party software such as UG, Mastercam, PowerMILL, featurecam, ArtCAM, jdpaint, Wentai, etc.
It supports self programming tool library, and can flexibly use a variety of tool libraries.
1.2 Technical Specifications
|
basic function
|
|
Number of control axes
|
Axis 3 ~ 6 (x, y, Z, a, B, c)
|
|
Number of linkage axes
|
Full linkage
|
|
Tool magazine
|
Code library, need to edit
|
|
principal axis
|
There are 2 analog spindles, of which spindle 1 can use digital spindle (occupying one digital axis)
|
|
Spindle monitoring
|
yes
|
|
Minimum instruction unit
|
0.001 mm
|
|
Maximum instruction value
|
±99999999×Minimum instruction unit
|
|
Rapid feed rate
|
30000 mm / min
|
|
Rapid feed rate
|
F0, 25%, 50%, 75%,100%
|
|
Pulse mode
|
1: Direction + pulse 2: quadrature pulse (recommended if driver supports, stronger anti-interference)
|
|
Maximum frequency
|
100kHz, 200kHz, 500KHz can be set.(500KHz can only be realized in all axes orthogonal output mode)
|
|
Rate feed rate
|
0～150%
|
|
Electronic gear ratio
|
1～65535: 1～65535
|
|
Automatic acceleration and deceleration
|
yes
|
|
Forward looking algorithm for high speed small line segments
|
yes
|
|
Trial machining of handwheel
|
yes
|
|
location
|
G00 (linear interpolation positioning)
|
|
interpolation
|
Linear (G01), arc (G02 / G03 / G12), spiral interpolation
|
|
Return to reference point
|
Automatic return to reference point (G28)
|
|
LCD
|
7-inch TFT LCD with resolution of 800×four hundred and eighty
|
|
MDI software key
|
8
|
|
Single step feed
|
x1，x10，x100
|
|
communication interface
|
U disk interface
|
|
External handwheel interface
|
yes
|
|
I / O interface
|
24 / 24 (expandable to 96 / 96)
|
|
Pause (SEC)
|
yes
|
|
Quasi stop state
|
yes
|
|
Accurate stop
|
yes
|
|
Memory trip check
|
yes
|
|
MDI operation
|
Yes, it supports multi segment operation
|
|
reset
|
yes
|
|
Trip switch
|
yes
|
|
Single section operation
|
yes
|
|
Program protection switch
|
yes
|
|
Self diagnosis function
|
yes
|
|
Emergency stop
|
yes
|
|
Power Supply
|
Single phase AC220 V + 10% - 15%, 50 Hz ± 1 Hz
|
|
Coordinate system
|
Machine coordinate system (g53), workpiece coordinate system (G92, g54 ~ G59), local coordinate system (G52), coordinate system plane designation
|
|
Automatic coordinate system setting
|
yes
|
|
Decimal point input
|
yes
|
|
Auxiliary function
|
|
Auxiliary function
|
M2 digit, M code user-defined, manual / MDI / automatic control spindle forward, reverse, stop;Control the start and stop of coolant;Control the start and stop of lubrication
|
|
Spindle function
|
|
Spindle function
|
Double spindle
|
|
Digital spindle
|
Spindle 1 supports, occupies a digital axis (Z axis does not support), and the speed is more stable.
|
|
tapping
|
support
|
|
Spindle analog output
|
Yes, double spindle
|
|
Tool function
|
|
Tool function
|
It supports automatic tool change, tool setting in center and three-point centering
|
|
Tool compensation memory
|
-9999.999 ~ 9999.999, 99
|
|
Tool compensation
|
Knife length compensation and radius compensation
|
|
Edit operation
|
|
Editing function
|
Parameters, diagnosis bit input, program editing, MDI multi program segment execution
|
|
storage capacity
|
512M
|
|
Number of stored programs
|
500
|
|
Display of program name
|
Chinese, English, numbers, combinations
|
|
Program line lookup
|
yes
|
|
Optional program skip
|
yes
|
|
Program switch
|
yes
|
|
display
|
|
display
|
Chinese, English
|
|
Display of processing time and number of parts
|
yes
|
|
Spindle speed, M / s command
|
yes
|
|
XC709D host size (mm)
|
|
Overall dimensions (height×wide×Thick)
|
328×236×80
|
|
Opening size (height×Wide)
|
305×207
|
|

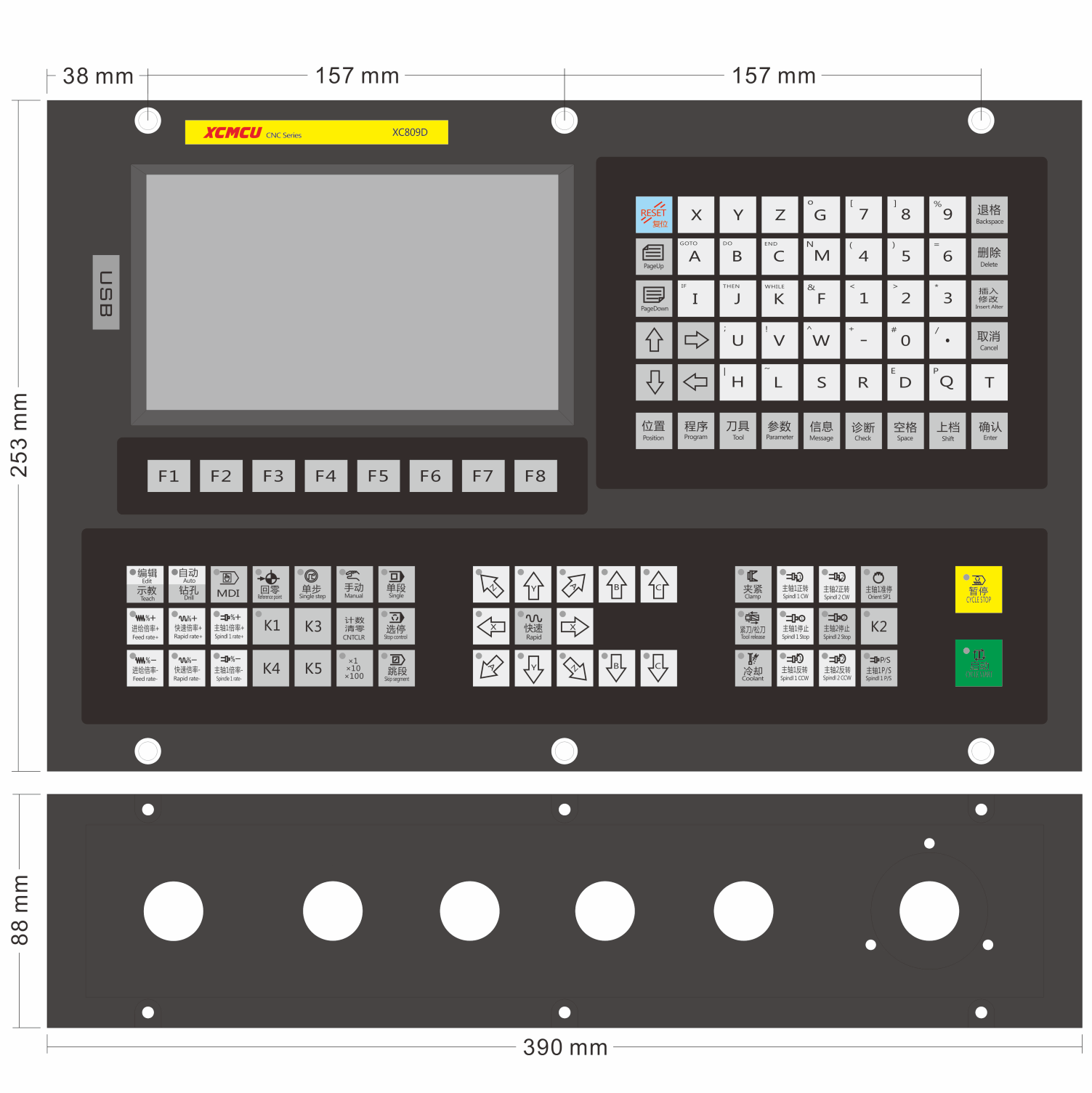

XC809D host size (mm)
|
|
Overall dimensions (height×wide×Thick)
|
390×253×80
|
|
Opening size (height×Wide)
|
370×228
|
