XC809T series multifunctional CNC system for lathe

SKU: PCS

system introduction

XC809T multifunctional lathe CNC system is a new generation CNC system developed by our company.It uses 32-bit high-performance microprocessor, real-time multi task control technology and hardware interpolation technology, full linkage, high-speed small line look ahead algorithm.The interpolation accuracy is 0.001mm and the maximum speed is 30 m / min.

0.0 (0 Reviews)
0 Sold
$310.00 $280.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • XC809T series:
    XC809TB 2-axis
    XC809TC 3-axis
    XC809TD 4-axis
    XC809TE 5-axis
    XC809TF 6-axis
Quantity
-
+
  • XC809T series multifunctional CNC system for lathe
  • XC809T series multifunctional CNC system for lathe
1/1
  • XC809T series multifunctional CNC system for lathe
  • Description

Software and hardware characteristics of XC809T CNC system:

Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, maximum speed of 30 m / min, support direction + pulse and orthogonal pulse.

It adopts 7-inch color wide screen LCD with resolution of 800x480 and windows interface style.Equipped with 8 soft function keys, easy to operate and learn.Provide parameter classification, alarm log, system diagnosis and other rich display interface to facilitate debugging and maintenance.

It is compatible with FANUC system instruction.

Full screen editing of part program, built-in 512M mass program space, can store 500 part programs.

With USB interface, it supports file reading and writing and data backup of U disk.

Input 24 (expandable to 96) points, output 24 (expandable to 96) points (customized), flexible and convenient.

The Chinese / English operation interface, complete help information, more convenient operation.

It supports long tool compensation and radius compensation.

It supports the trial processing of handwheel, which is convenient for program debugging.

It supports multi-level operation authority, facilitates equipment management, and has time limited system locking function.

Support G code files of third-party software such as UG, Mastercam, PowerMILL and featurecam.

It supports self programming tool library, and can flexibly use various tool libraries and servo turret.

Double spindle, supporting spindle 2 and spindle 1 to realize flying tool cutting (double servo spindle is required).

The double head spindle can be processed.

A feeding program can be run synchronously to realize efficient processing.

It supports side drilling and tapping, and main shaft 2 position interpolation tapping.



1.2 technical specifications

basic function

Number of control axes

Axis 2 ~ 6 (x, y, Z, a, B, c)

Number of linkage axes

Full linkage

Tool magazine

Code library, need to edit

Minimum instruction unit

0.001 mm

Maximum instruction value

±99999999×Minimum instruction unit

Rapid feed rate

30000 mm / min

Cutting feed mode

Every minute, every turn in

Rapid feed rate

F0, 25%, 50%, 75%,100%

Pulse mode

1: Direction + pulse 2: quadrature pulse (recommended if driver supports, stronger anti-interference)

Maximum frequency

100kHz, 200kHz, 500KHz can be set.(500KHz can only be realized in all axes orthogonal output mode)

Rate feed rate

0150%

Electronic gear ratio

165535: 165535

Constant linear velocity

yes

Forward looking algorithm for high speed small line segments

yes

Trial machining of handwheel

yes

location

G00 (linear interpolation positioning)

interpolation

Linear (G01), arc (G02 / G03 / G12), spiral interpolation

Return to reference point

Automatic return to reference point (G28)

LCD

7-inch TFT LCD with resolution of 800x480

MDI software key

8

Single step feed

x1,x10,x100

communication interface

U disk interface

External handwheel interface

yes

I / O interface

24 / 24 (expandable to 96 / 96)

Pause (SEC)

yes

Quasi stop state

yes

Accurate stop

yes

Memory trip check

yes

MDI operation

Yes, it supports multi segment operation

reset

yes

Trip switch

yes

Single section operation

yes

Program protection switch

yes

Self diagnosis function

yes

Emergency stop

yes

Power Supply

Single phase AC220 V + 10% - 15%, 50 Hz ± 1 Hz

Coordinate system

Machine coordinate system (g53), workpiece coordinate system (G92, g54 ~ G59), local coordinate system (G52), coordinate system plane designation

Automatic coordinate system setting

yes

Decimal point input

yes

Auxiliary function

Auxiliary function

M2 digit, M code user-defined, manual / MDI / automatic control spindle forward, reverse, stop;Control the start and stop of coolant;Control the start and stop of lubrication

Spindle function

Spindle function

Dual spindle: analog, 485 communication (more stable than analog), servo pulse mode

Digital spindle

Support, double digital spindle support flying tool cutting function

Tapping thread

Yes, spindle 2 only supports interpolation tapping.Support spindle 1 interpolation thread processing

Spindle analog output

Yes, double spindle 0 ~ 10V

Tool function

Tool function

Support automatic tool change

Tool compensation memory

-9999.999 ~ 9999.999, 16

Tool compensation

XZ knife long knife compensation, radius knife compensation

Edit operation

Editing function

Parameters, diagnosis bit input, program editing, MDI multi program segment execution

storage capacity

512M

Number of stored programs

500

Display of program name

Chinese, English, numbers, combinations

Program line lookup

yes

Optional program skip

yes

Program switch

yes

display

display

Chinese, English

Display of processing time and number of parts

yes

Spindle speed, M / s command

yes

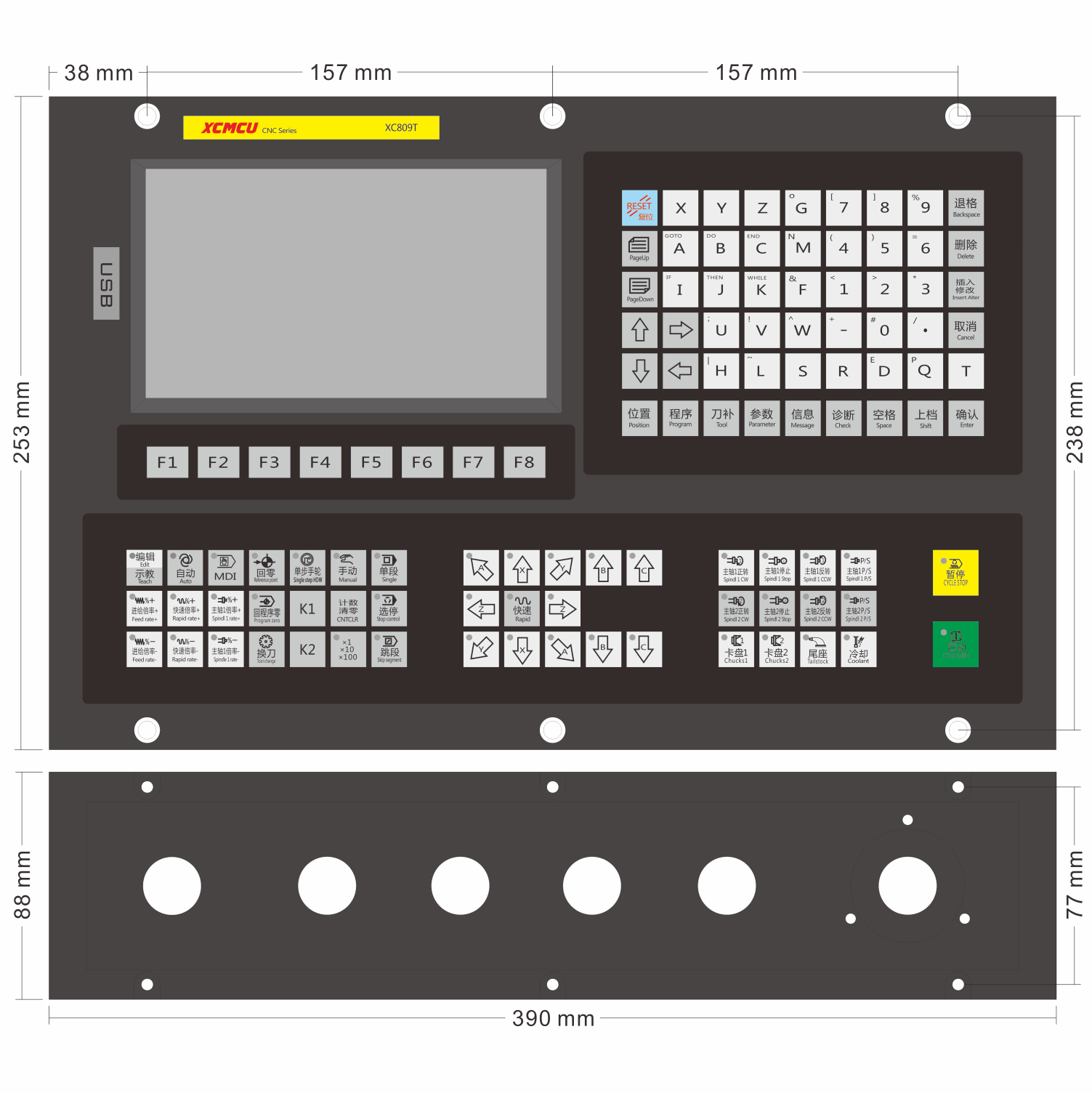

Size (mm)

Overall dimensions of main engine

390×253×80 (long×wide×Thick)

Hole size of main engine

370×228(L×Wide)
