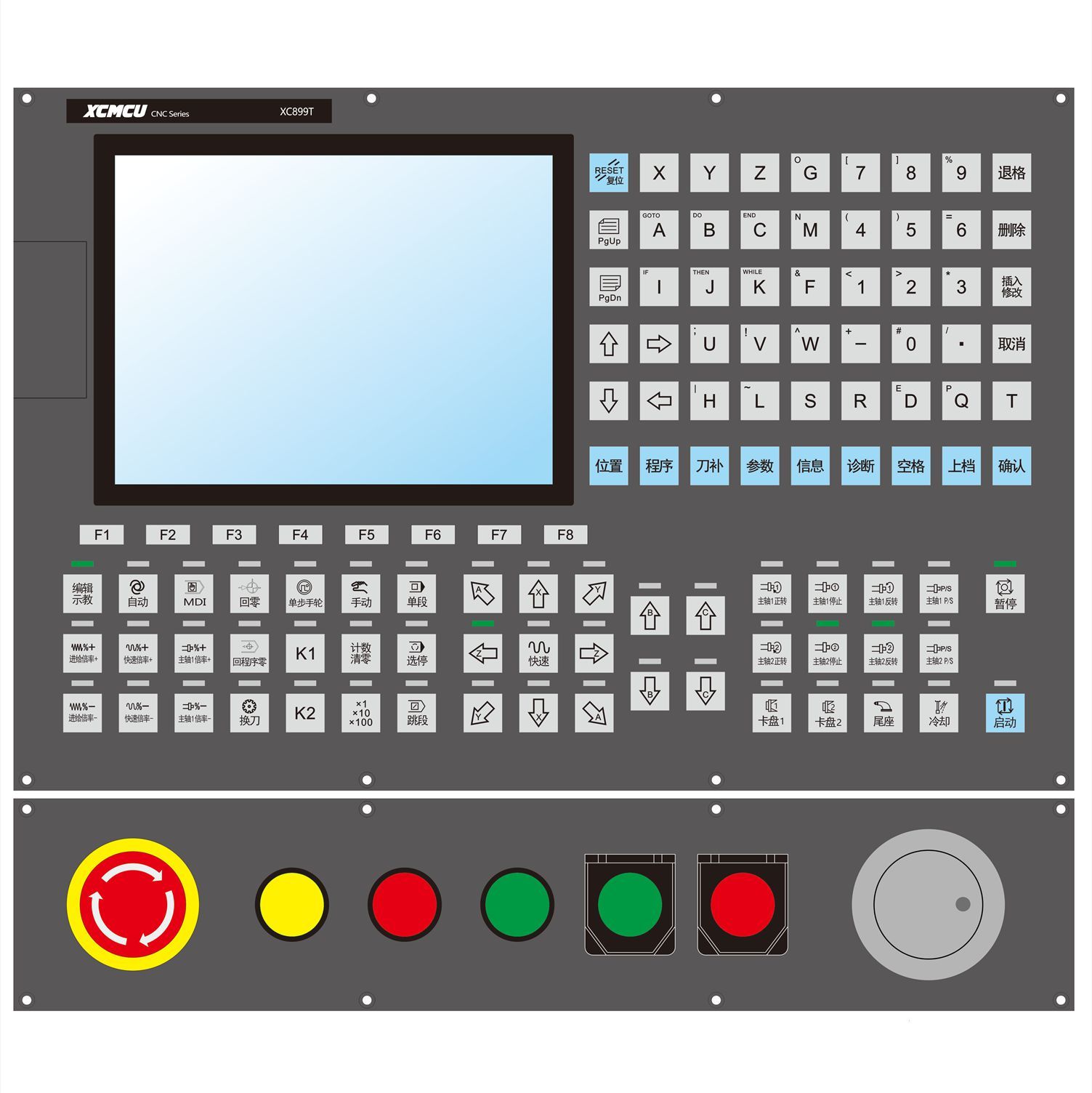

XC899T series multi-functional lathe numerical control system

SKU: PCS

Introduction to the system

XC899T multifunctional lathe CNC system is a new generation of CNC system developed by our company. It adopts 32-bit high-performance microprocessor, real-time multitasking control technology and hardware interpolation technology, full linkage, high-speed small line segment forward-looking algorithm, 0.001mm interpolation accuracy, and the highest speed of 30 meters/minute.

0.0 (0 Reviews)
0 Sold
$410.00 $380.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • XC899T series:
    XC899TB 2-axis
    XC899TC 3-axis
    XC899TD 4-axis
    XC899TE 5-axis
    XC899TF 6-axis
Quantity
-
+
  • XC899T series multi-functional lathe numerical control system
  • XC899T series multi-functional lathe numerical control system
1/1
  • XC899T series multi-functional lathe numerical control system
  • Description

Note: The secondary panel does not contain handwheels and buttons.

XC899T CNC system hardware and software features.

Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, maximum speed 30m/min, support direction + pulse and orthogonal pulse.

Using 8.4-inch color widescreen LCD, resolution 800 x 600, Windows interface style. Equipped with 8 soft function keys, easy to operate. Provide parameter classification, alarm logs, system diagnostics and other rich display interface, convenient debugging and maintenance.

International standard G instruction, compatible with FANUC system instruction.

Supports RS485 absolute servo.

Parts program full-screen editing, built-in 500M massive program space, can store 500 parts program.

With USB interface, support U disk file reading and writing, data backup.

Input 24 (expandable to 96) points, output 24 (expandable to 96) points (customized), flexible and convenient.

Chinese/English operation interface, complete help information, more convenient operation.

 Supports knife length and radius knife patches.

Support handwheel trial processing, convenient program debugging.

Support multi-level operating privileges, convenient equipment management, with time-limited system lock function.

Support UG, Mastercam, PowerMill, FeatureCAM and other third-party software G code files.

Support self-programming tool magazine, can flexibly use a variety of tool magazines, can use servo turret.

Dual spindles, support spindle 2 and spindle 1 synchronized to achieve flying cutter cutting (dual servo spindles are required).

Double spindle positioning function, can realize double-head machining.

Able to run a feeding program simultaneously for efficient processing.

Support side drilling and tapping, spindle 2 position interpolation tapping.



1.2 technical specifications

Basic functions

control the number of axes

2~6轴

Number of linked axes

Full linkage

Knife storage

Support,need to edit the code of the cutter

minimum command unit

0.001 mm

maximum command value

± 999999999 x minimum command unit

Rapid feed speeds

30,000 mm/min

Cutting feed mode

Feed per minute, feed per revolution

Rapid feed multiplier

F0, 25%, 50%, 75%,100%

Pulse mode

1:Direction+Pulse 2:Orthogonal Pulse(If the driver support, recommend, anti-interference is stronger) 3:Double Pulse, compatible with the old stepper driver

Maximum frequency

100Khz,250Khz,500Khz can be set. (500KHz only orthogonal output pulse)

Feed rate multiplier

0150%

electronic gear ratios

165535: 165535

constant linear velocity

have

High-speed small line segment look-ahead algorithms

have

Handwheel test machining

have

Positioning

G00 (Linear interpolation positioning possible)

Interpolation

Linear (G01), circular (G02/G03/G12), helical interpolation

return to the reference point

Automatic return to reference point (G28)

LCD

8.4-inch TFT LCD screen, resolution 800X600

MDI soft keys

8

Single-step feed

x1,x10,x100

communication interface

USB flash drive interface

external handwheel interface

have

I/O interface

24/24 (expandable to 96/96)

Pause (seconds)

have

Quasi-parking status

have

Permission to stop

have

Storage trip check

have

MDI operation

Yes, supports multi-segment operation

Reset

have

Jump section switch

have

single-segment operation

have

program protection switch

have

self-diagnostic function

have

Emergency stop

have

Power supply

Single-phase AC220V+10%-15%,50Hz±1Hz

coordinate system

Machine coordinate system (G53), workpiece coordinate system (G92, G54~G59), local coordinate system (G52), coordinate system plane designation

automatic coordinate system setting

have

decimal entry

have

Cofunctions

Auxiliary functions

M2 digit, M code customization, manual/MDI/automatic control of spindle forward, reverse, stop; control of coolant start/stop; control of lubrication start/stop, etc

Spindle function

spindle functions

Dual spindle: analog, 485 communication (more stable than analog), servo pulse can be used

digital spindle

Support, dual digital spindle support flying cutter cutting function

Tapping threads

Supported, Spindle 2 only supports interpolated tapping. Supports spindle 1 for interpolated threading.

spindle analog output

Yes, dual spindle 0~10V

Knife function

tool functions

Supports automatic tool change.

tool compensation memory

-9999.999~9999.999, 16

tool compensation

XZ tool length patch, radius patch

editorial operations

editing functions

parameters, diagnostic per-position input, program editing, MDI multi-segment execution

storage capacity

500M

number of stored programs

500

the display of program names

Chinese, English, numbers, combinations

program line lookup

have

Skipping optional program segments

have

program switches

have

Display

Display

Chinese, English

Machining time and number of parts display

have

Spindle speed, M/S command

have

Size(mm)

Overall Dimension(H×W×T)

400×265×80

Opening size (H×W)

388×248
