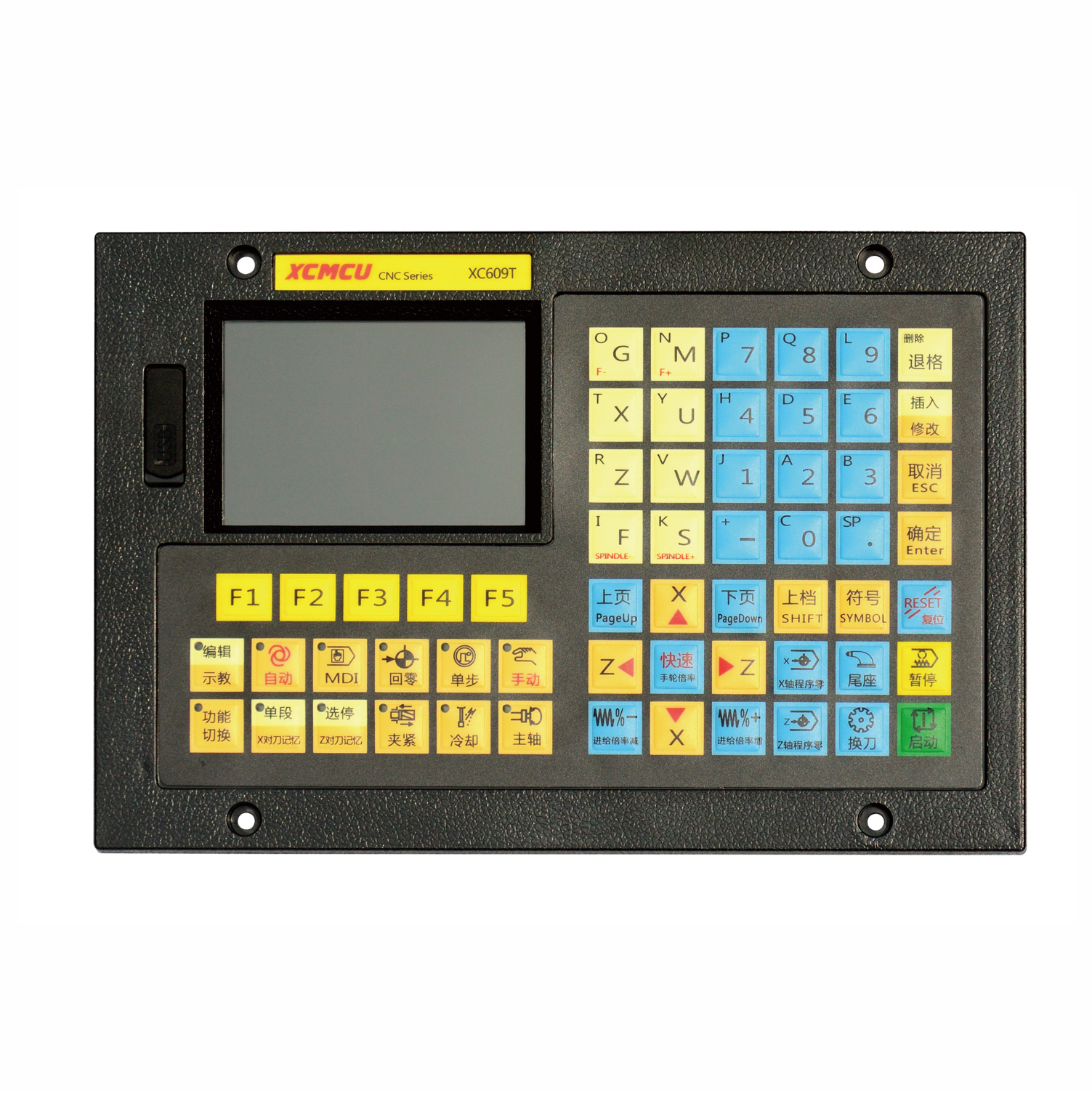

Software and hardware characteristics of XC609T CNC system:
♦ Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy and maximum speed of 12m / min.
♦ It adopts 3.5 inch color wide screen LCD with resolution of 480x320 and windows interface style.Equipped with 5 soft function keys, easy to operate and learn.Provide parameter classification, alarm log, system diagnosis and other rich display interface to facilitate debugging and maintenance.
♦ International standard G directive.
♦ Part program full-screen editing, built-in 512M massive program space, can store 200 part programs.
♦ With USB interface, it supports file reading and writing, data backup and direct processing (DNC) of U disk.
♦ Input 24 (expandable to 96) points, output 24 (expandable to 96) points (customized), flexible and convenient.
♦ The Chinese / English operation interface, complete help information, more convenient operation.
♦ It supports multi-level operation authority, facilitates equipment management, and has time limited system locking function.
1.2 technical specifications
|
Basic Function
|
|
Number of control axes
|
2 axis (x, z)
|
|
Number of linkage axes
|
Full linkage
|
|
Simulation spindle
|
2 routes
|
|
Spindle ratio
|
50%~120%
|
|
Minimum instruction unit
|
0.001 mm
|
|
Maximum instruction value
|
±99999999×Minimum instruction unit
|
|
Rapid feed rate
|
12000 mm / min
|
|
Rapid feed rate
|
F0, 25%, 50%, 100%
|
|
feed rate
|
12000 mm / min
|
|
Rate feed rate
|
10%～150%
|
|
Electronic gear ratio
|
1～65535: 1～65535
|
|
Automatic acceleration and deceleration
|
yes
|
|
location
|
G00 (linear interpolation positioning)
|
|
interpolation
|
Straight line (G01), arc (G02 / G03 / G05)
|
|
Return to reference point
|
Automatic return to reference point (G28)
|
|
LCD
|
3.5-inch TFT LCD with resolution of 480x320
|
|
MDI software key
|
Five
|
|
Single step feed
|
x1，x10，x100
|
|
communication interface
|
U disk interface
|
|
External handwheel interface
|
yes
|
|
I / O interface
|
24 / 24 (expandable to 96 / 96)
|
|
Pause (SEC)
|
yes
|
|
Quasi stop state
|
yes
|
|
Accurate stop
|
yes
|
|
Memory trip check
|
yes
|
|
MDI operation
|
Yes, it supports multi segment operation
|
|
reset
|
yes
|
|
Selective stop switch
|
yes
|
|
Single section operation
|
yes
|
|
Program protection switch
|
yes
|
|
Self diagnosis function
|
yes
|
|
Emergency stop
|
yes
|
|
Power Supply
|
DC24V
|
|
Coordinate system
|
G50 set coordinates
|
|
Automatic coordinate system setting
|
yes
|
|
Decimal point input
|
yes
|
|
Auxiliary function
|
|
Auxiliary function
|
M2 digit, M code user-defined, manual / MDI / automatic control spindle forward, reverse, stop;Control the start and stop of coolant.
|
|
Spindle function
|
|
Spindle function
|
Simulation spindle, double spindle
|
|
Edit operation
|
|
Editing function
|
Parameters, diagnosis bit input, program editing, MDI multi program segment execution
|
|
storage capacity
|
512M
|
|
Number of stored programs
|
200
|
|
Display of program name
|
Chinese, English, numbers, combinations
|
|
Program line lookup
|
yes
|
|
Optional program skip
|
yes
|
|
Program switch
|
yes
|
|
Display
|
|
display
|
Chinese, English
|
|
Display of processing time and number of parts
|
yes
|
|
Spindle speed, M / s command
|
yes
|
