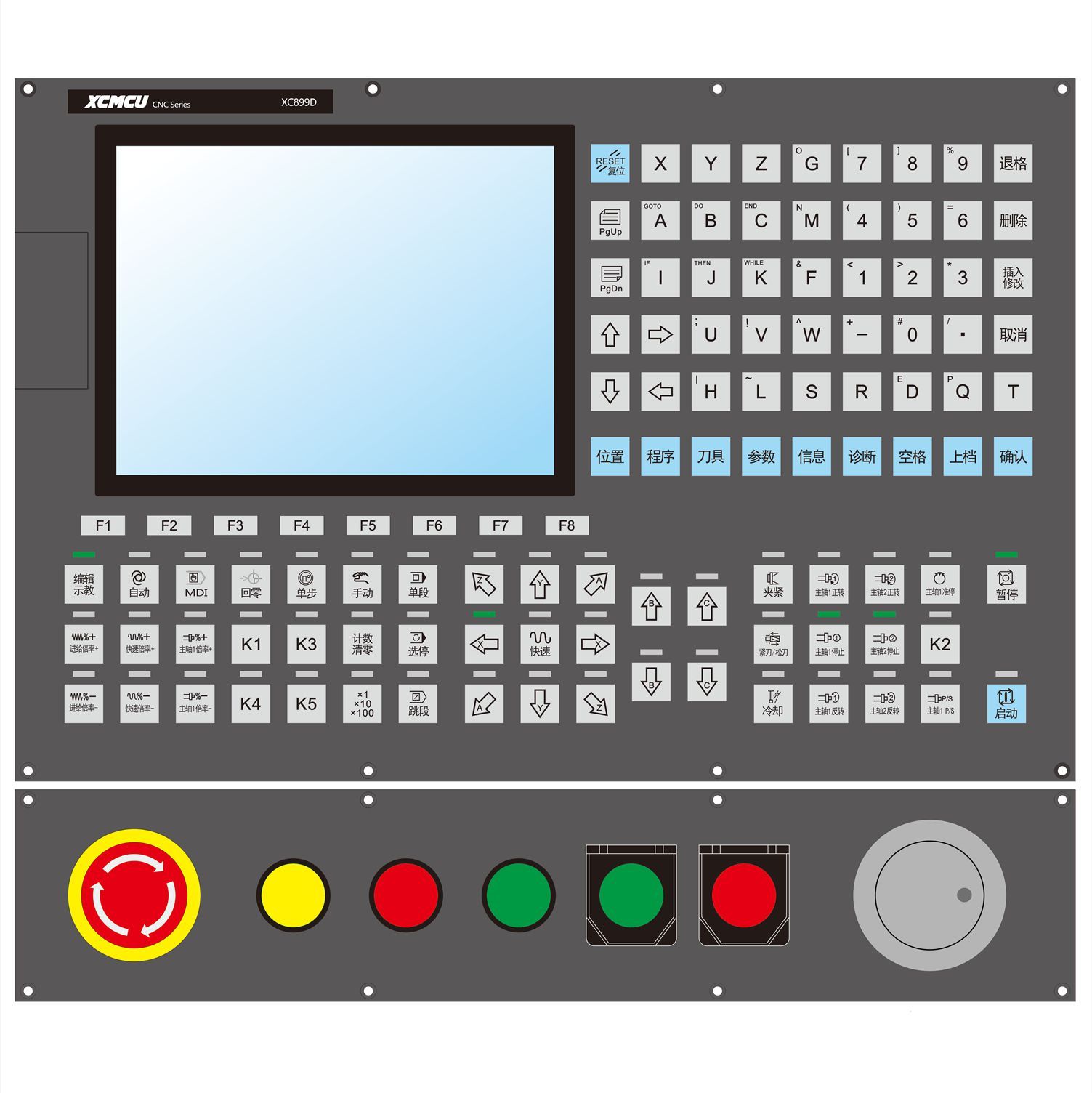

XC899D series carving, milling, drilling and tapping multi-functional CNC system

SKU: PCS

Introduction to the system

XC899D Multi-functional CNC system for engraving, milling, drilling and tapping is a new generation of CNC system developed by our company. It supports engraving, milling, drilling and tapping. It adopts 32-bit high-performance microprocessor, real-time multi-tasking control technology and hardware interpolation technology, full linkage, high-speed small line segment forward-looking algorithm. 0.001mm interpolation accuracy, the highest speed of 30 meters / min. It is the best choice for engraving machine, machining center, drilling and tapping center, CNC milling machine and CNC drilling machine.

0.0 (0 Reviews)
7 Sold
$430.00 $400.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • XC899D series:
    XC899DC 3-axis
    XC899DD 4-axis
    XC899DE 5-axis
    XC899DF 6-axis
Quantity
-
+
  • XC899D series carving, milling, drilling and tapping multi-functional CNC system
  • XC899D series carving, milling, drilling and tapping multi-functional CNC system
1/1
  • XC899D series carving, milling, drilling and tapping multi-functional CNC system
  • Description

Note: The secondary panel does not contain handwheels and buttons.

XC899D CNC system hardware and software features.

★Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, maximum speed 30m/min, support direction + pulse and orthogonal pulse.

★Using 8.4-inch color widescreen LCD, resolution 800 x 600, Windows interface style. Equipped with 8 soft function keys, easy to operate. Provide parameter classification, alarm logs, system diagnostics and other rich display interface, convenient debugging and maintenance.

★International standard G instruction, compatible with FANUC system instruction.

★40 kinds of G commands, support drilling cycle and tapping cycle.

★Supports RS485 absolute servo.

★Parts program full-screen editing, built-in 500M massive program space, can store N parts program.

★With USB interface, support U disk file reading and writing, data backup.

★Input 24 (expandable to 96) points, output 24 (expandable to 96) points (customized), flexible and convenient.

★Chinese and English operation interface, complete help information, more convenient operation.

★The system uses interpolation front acceleration and deceleration control.

★ Supports knife length and radius knife patches.

★Support handwheel trial processing, convenient program debugging.

★Support multi-level operating privileges, convenient equipment management, with time-limited system lock function.

★Support UG, Mastercam, PowerMill, FeatureCAM, ArtCAM, JDPaint, Wentai and other third-party software G code files.

★Support self-programming tool magazine, flexible use of a variety of tool magazines.



1.2 technical specifications

basic functions

control the number of axes

3~6轴

Number of linked axes

Full linkage

Knife storage

Support,need to edit the code of the cutter

Spindle

2 analog spindles, of which spindle 1 can be used as a digital spindle (occupying one digital axis)

spindle monitoring

have

minimum command unit

0.001 mm

maximum command value

± 999999999 x minimum command unit

Rapid feed speeds

30,000 mm/min

Rapid feed multiplier

F0, 25%, 50%, 75%,100%

Pulse mode

1:Direction+Pulse 2:Orthogonal Pulse (if the driver supports, recommended, stronger anti-interference, higher moderation) 3:Double Pulse, compatible with the old stepper driver

Maximum frequency

100Khz,250Khz,500Khz can be set. (500KHz only orthogonal output pulse)

Feed rate multiplier

0150%

electronic gear ratios

165535: 165535

Automatic acceleration and deceleration

have

High-speed small line segment look-ahead algorithms

have

Handwheel test machining

have

Positioning

G00 (Linear interpolation positioning possible)

Interpolation

Linear (G01), circular (G02/G03/G12), helical interpolation

return to the reference point

Automatic return to reference point (G28)

LCD

8.4-inch TFT LCD screen, resolution 800 x 600

MDI soft keys

8

Single-step feed

x1,x10,x100

communication interface

USB flash drive interface

external handwheel interface

have

I/O interface

24/24 (expandable to 96/96)

Pause (seconds)

have

Quasi-parking status

have

Permission to stop

have

Storage trip check

have

MDI operation

Yes, supports multi-segment operation

Reset

have

Jump section switch

have

single-segment operation

have

program protection switch

have

self-diagnostic function

have

Emergency stop

have

Power supply

Single-phase AC220V+10%-15%,50Hz±1Hz

coordinate system

Machine coordinate system (G53), workpiece coordinate system (G92, G54~G59), local coordinate system (G52), coordinate system plane designation

automatic coordinate system setting

have

decimal entry

have

Auxiliary functions

Auxiliary functions

M2 digit, M code customization, manual/MDI/automatic way to control the spindle forward, reverse, stop; control the coolant start and stop; control the lubrication start and stop, etc.,

spindle functions

spindle functions

Dual spindle (single digital spindle)

digital spindle

Spindle 1 support, occupying one digital axis (Z-axis is not supported), more stable speed.

Tapping

Support

spindle analog output

Yes, twin spindles

tool functions

tool functions

Support automatic tool change, support centering tool setting, three-point centering tool setting

tool compensation memory

-9999.999~9999.999,99

tool compensation

Knife length and radius patches

editing operations

editing functions

parameters, diagnostic per-position input, program editing, MDI multi-segment execution

storage capacity

500M

number of stored programs

500

the display of program names

Chinese, English, numbers, combinations

program line lookup

have

Skipping optional program segments

have

program switches

have

Display

Display

Chinese, English

Machining time and number of parts display

have

Spindle speed, M/S command

have

Dimension of main unit(mm)

Overall Dimension(H×W×T)

400×265×80

Opening size (H×W)

388×248
