Basic Functions
|
|
LCD
|
10.4-inch TFT LCD screen, 800×600 resolution
|
|
Number of Channels
|
Maximum 4 channels
|
|
Number of Axes Controlled by One Channel
|
Arbitrary combination of 1~5 axes (X, Y, Z, A, B, C), 1 main spindle (C or SP), 1 tool magazine axis (XT)
|
|
Supports Multiple Motors on One Axis
|
One machining axis can support 8 motors, and the controller manages their power-on reset automatic synchronization, motion synchronization, and position deviation alarm.
|
|
Number of machining axis motors
|
Maximum 16 machining axis motors (bus motors)
|
|
Error compensation
|
Supports backlash compensation, 1000-segment unidirectional pitch with backlash compensation,
1000-segment bidirectional pitch compensation.
|
|
Tool magazine
|
Supported, requires editing tool magazine code.
|
|
4 groups of dedicated M-codes
|
M8M9, 10M11, M12M13, M14M15, M16M17, M20M21, their functions can be customized. Divided into 4 groups: for example, M8 has M8.1, M8.2, M8.3, M8.4
|
|
100 coordinate systems per channel
|
A total of 100 coordinate system offsets, using G54.00----- G54.99, compatible with aliases G54 (G54.00), G55 (G54.01), G56 (G54.02), G57 (G54.03), G57 (G54.04), G59 (G54.05).
|
|
Coordinate system tool setting assistance
|
Supports centering tool setting, three-point or multi-point (higher precision) circle centering tool setting, tool setting bar or feeler gauge offset setting.
|
|
Automatic edge tracking and centering
|
Automatic minute setting for X and Y axes, automatic centering from 3 to 8 o'clock.
Supports manual operation and program-invoked operation, improving production efficiency. Requires wireless probe support.
|
|
Fixed Cycle I Drilling/Tapping
General Commands
|
G73,G74,G81,G82,G83,G84,G85, G86, G87,G88,G89。
G88 is custom, enabling pecking drilling with varying distances, speeds, and rotation speeds.
|
|
Fixed Cycle II Instructions
|
Internal thread milling G116/G117, external thread milling G118/G119, circular internal groove G120/G121, internal circle finish milling G122/G123, external circle finish milling G124/G125,
Rectangular groove G126/G127, rectangular groove internal finish milling G128/G129, rectangular external finish milling G130/G131.
|
|
Fixed Cyclic Matrix Commands
|
Circle equal division uses G70 (G134), equal arc length uses G71 (G136), straight line equal distance uses G72 (G135), checkerboard equal distance uses G137.1, checkerboard equal division uses G137.2.
|
|
Minimum Command Unit
|
0.0001 mm
|
|
Maximum Command Value
|
±99999999 × Minimum Command Unit
|
|
Rapid Feed Rate
|
30000 mm/min
|
|
4 Spindles
|
4 can be set. 2 pulse channels, 2 analog channels, 2 encoder channels.
Bus motors can also be used
|
|
Maximum Spindle Pulse Frequency
|
5V differential output. Directional + pulse 2MHz, orthogonal 4MHz.
|
|
Spindle Ratio
|
50%~200%
|
|
Rapid Feed Ratio
|
F0, F25, F50, F75,F100
|
|
Feed Rate Ratio
|
0%~150%
|
|
Axis Type
|
Rotary Axis, Unidirectional Rotary (Forward Rotation Only), Linear Axis.
|
|
High-speed small line segment look-ahead algorithm
|
Yes
|
|
Handwheel trial processing
|
Yes
|
|
MDI soft key
|
10 of them
|
|
Communication interface
|
USB flash drive interface, Modbus 485 host computer communication interface.
|
|
External handwheel interface
|
Yes
|
|
Input port
|
62 local inputs (6 dedicated), expandable to 110 points
|
|
Output port
|
39 local outputs, expandable to 103 points
|
|
Limit Check
|
Two, switchable via M24/M25. Purpose is to prevent machining from encroaching on the tool change area.
|
|
MDI Operation
|
Yes, supports multi-segment operation
|
|
Reset
|
Yes
|
|
Lamb Jumper Switch
|
Yes
|
|
Single-segment Operation
|
Yes
|
|
Protection Switch
|
Parameter Switch, Program Switch, Machine Coordinate Switch
|
|
Self-Diagnostic Function
|
Yes
|
|
Emergency Stop
|
Yes
|
|
Power Supply
|
Single-phase AC220V +10%-15%, 50Hz±1Hz
|
|
Auxiliary Functions
|
|
Auxiliary Functions
|
M2 bit depth, M code is customizable, manual/MDI/automatic mode controls spindle forward, reverse, and stop; controls coolant start/stop; controls lubrication start/stop, etc.
|
|
Spindle Functions
|
|
Spindle Functions
|
4 Spindles
|
|
Digital Spindle
|
Pulse Controlled or Bus Controlled Spindle
|
|
Spindle Position Mode
|
Yes
|
|
Spindle Pre-Stop
|
Yes
|
|
Tapping
|
Supported
|
|
Spindle Analog Output
|
Yes, Dual Analog Output
|
|
Tooling Functions
|
|
Tooling Functions
|
Supports automatic tool change, automatic tool setting via tool setter
|
|
Tool compensation memory
|
-9999.999~9999.999, 99 files
|
|
Tool compensation
|
Tool length compensation and radius compensation
|
|
Editing operation
|
|
Editing function
|
Parameter, diagnostic bit input, program editing, MDI multi-program segment execution
|
|
Storage capacity
|
4GB
|
|
Program folder management
|
Supports convenient file classification
|
|
Program name display
|
Chinese, English, numbers, and combinations
|
|
Program line search
|
Yes
|
|
Skip selected program segments
|
Yes
|
|
Display
|
|
Display
|
Chinese, English
|
|
Machining time and number of parts display
|
Single and cumulative dual display
|
|
Spindle speed, M/S command
|
Dual Display Setup and Real-time Display
|
|

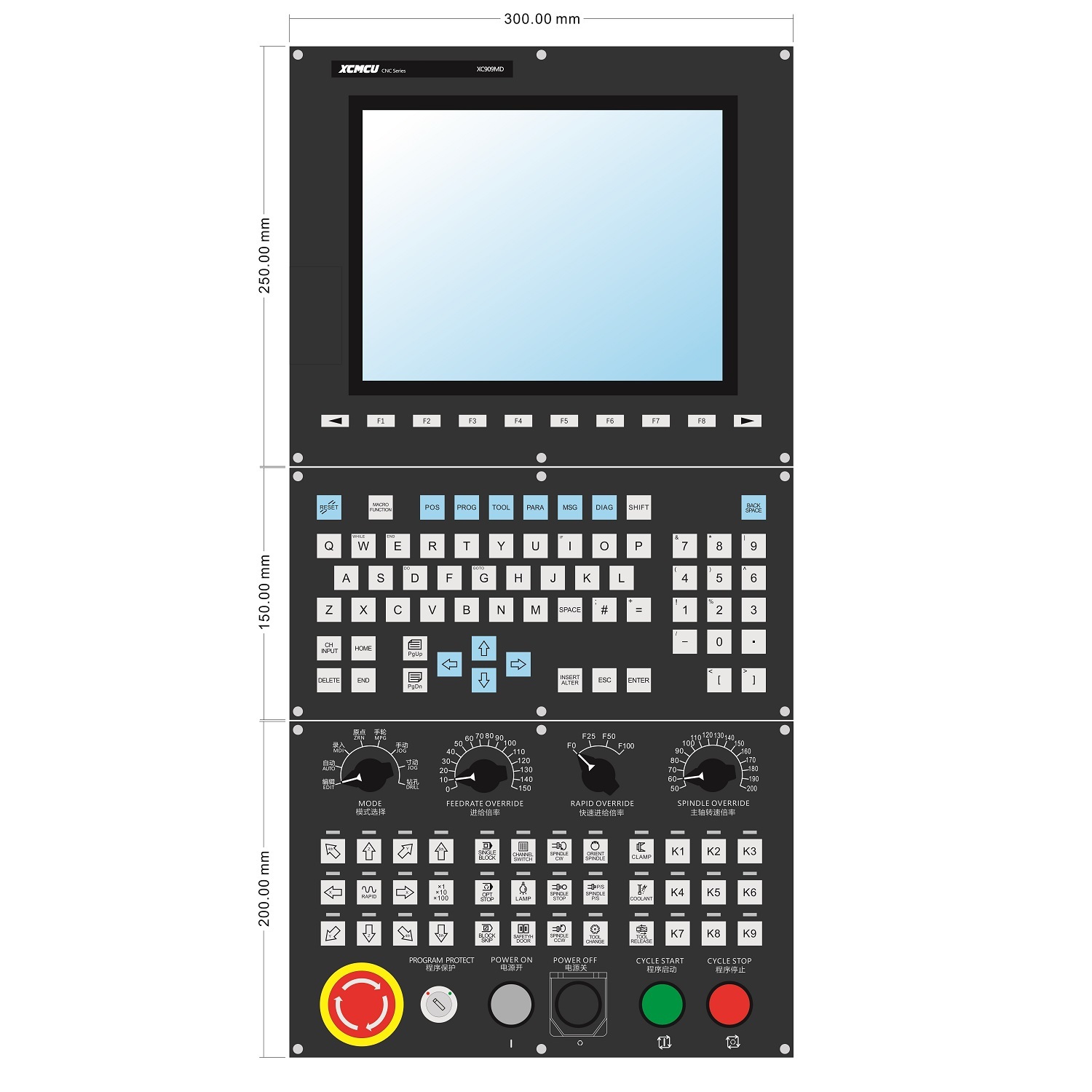

Dimensions (mm)
|
|
Main Unit Dimensions (Width × Height × Depth)
|
300×250×60
|
|
Main Unit Cutout Dimensions (Width × Height)
|
290×233
|
|
Keyboard A dimensions (height × width × thickness)
|
300×150×30
|
|
Keyboard A cutout dimensions (height × width)
|
290×133
|
|
Keyboard B Dimensions (H×W×D)
|
300×200×60
|
|
Keyboard B Opening Dimensions (H×W)
|
290×183
|
